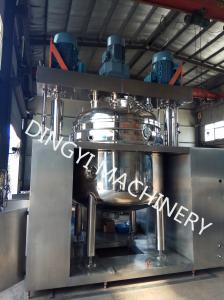

HMI control 1600L Vacuum emulsifier with stainless steel for cream
Product description
1) Process Flow:
a. Water, oil and other liquid or powder, pre-heated and pre-mixed in Liquid tank and Oil tank.
b. and then Material will suck into emulsifying tank by vacuum system
c. and then start slow mixer and homogenizer for making the material.
d. The materials through high shear mixer become cream or lotion.
e. The finished product, pumped out from Discharge System.
2) Features:
a. Cover can be lifted up-down by hydraulic lifting system
b. The bubbles (generated during stirring and mixing process), sucked out from material, because of Vacuum pump.
c. Machine Materials use SS304 and SS316L
The Vacuum emulsifying machine which produced by our company is professional for pharmaceutical, chemical industry and cosmetics, food, drink and other industry!
The stirring apparatus is various and we can also design special agitating paddles according to customer’s requirement.
· Capacity:1000L
· Material: material contact part SS316L, material non-contact part SS304.
· Customized service: to provide and design total solution as per customer URS
Vacuum Emulsifying Machine including:
· Vacuum emulsifying main machine
· Pre-mixing tank for water and oil material
· Vacuum system
· Hydraulic system
· Control system
· Platform made from SS304
Vacuum emulsifying main machine:
· Slow mixer 0-40rpm with PTFE scraper
· Homogenizer 0-3500rpm (rotor and stator can adjust space)
· Heating by steam or electricity
· Pressure: chamber-0.09Mpa to 0.1Mpa, jacket 0.3Mpa for steam (standard type)
· Upper cover lifting by hydraulic
· Safety limit switch for safety operation
· Upper cover connection: Liquid feed inlet with stainless steel pipe filter, solid material inlet, vacuum inlet, compressed air inlet, breaking vacuum inlet, sight glass, CIP cleaning head, discharging port, dustproof respirator.
Water and oil pre-mixing tank
· High shear mixer 960rpm or slow mixer 60rpm
· Heating by steam or electricity
· Pipeline for material transfer to main emulsifying machine
Vacuum system:
· Water ring type vacuum pump or oil type vacuum pump
· Safety valve for protecting the Water ring type vacuum pump
After finish one batch, customer can choose positive pressure or rotor pump for material out.
|
Model
|
Capacity |
Emulsifying motor |
slow mixer motor |
Machine dimension |
Total power(KW) |
|
KW
|
RPM |
KW |
RPM |
LENGTH |
WIDTH |
HEIGHT |
Lifting hight |
| ZRJ-1600 |
1600L |
18.5 |
1150-3500 |
7.5 |
10-40 |
4000 |
4150 |
3800 |
5700 |
36 steam heating |
| ZRJ-1000 |
1000L |
15 |
1150-3500 |
4 |
10-40 |
3900 |
3400 |
3150 |
4600 |
29 steam heating |
