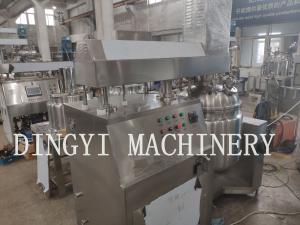

Compact Structure Vacuum Homogenizer Cream Mixer , Stable Cosmetic Homogenizer

Compact Structure Vacuum Homogenizer Cream Mixer , Stable Cosmetic Homogenizer

Vacuum Homogenizer Cream Mixer Main Features & Advantages:

1. CE and ISO certificated;
2. With manual rotation clamping, fixed the tank well to prevent tank from movement to injury the workers;
3. Main shaft and mixing agitator went through static and dynamic balance test -------- precise and stable, no bad effect on production;
4. Lifting structure adopts hydraulic cylinder as actuator, stable lifting, and integrated hydraulic station, environmental and without leakage;
5. Adopting world famous or China top brand components, ABB motor, NSK/SKF bearing, SCHNEIDER inverter & electrical components, stainless steel, certificates can be provided;
6. Customized options --------- lab type, pneumatic lifting type, platform type, kettle type, dual-shaft type, etc.

Vacuum Homogenizer Cream Mixer description

The controlling system adopts electric control system, stable and simple to manage.

The triple mixing adopts the Panasonic frequency converter for speed adjustment, which can meet different technological demands.

The homogenizing structure made through Japan technology adopts the good mechanical seal. The Max. emulsifying rotation speed can reach 3500rpm.

The vacuum de-foaming can make the materials meet the requirement of being aseptic.

Tank body welded by imported 3-layer stainless steel plate.Tank body and pipes adopt mirror polishing, conforming to cGMP.

The tank body can heat or cool materials .Heating modes include steam heating or electric heating.

Vacuum emulsifying main machine:
· Slow mixer 0-40rpm with PTFE scraper
· Homogenizer 0-3500rpm (rotor and stator can adjust space)
· Heating by steam or electricity
· Pressure: chamber-0.09Mpa to 0.1Mpa, jacket 0.3Mpa for steam (standard type)
· Upper cover lifting by hydraulic
· Safety limit switch for safety operation
· Upper cover connection: Liquid feed inlet with stainless steel pipe filter, solid material inlet, vacuum inlet, compressed air inlet, breaking vacuum inlet, sight glass, CIP cleaning head, discharging port, dustproof respirator.

Water and oil pre-mixing tank
· High shear mixer 960rpm or slow mixer 60rpm
· Heating by steam or electricity
· Pipeline for material transfer to main emulsifying machine

Vacuum system:
· Water ring type vacuum pump or oil type vacuum pump
· Safety valve for protecting the Water ring type vacuum pump

After finish one batch, customer can choose positive pressure or rotor pump for material out.

NOTE: Due to make toothpaste, the motor power have different type, so pls contact us, we will choose a suitable machine for you. we have engineer work for toothpaste factory more than 10 year also have machinery design experience.

cosmetic cream mixing machine

industrial homogenizer equipment

Compact Structure Vacuum Homogenizer Cream Mixer , Stable Cosmetic Homogenizer Images
